Jäger Handling GmbH

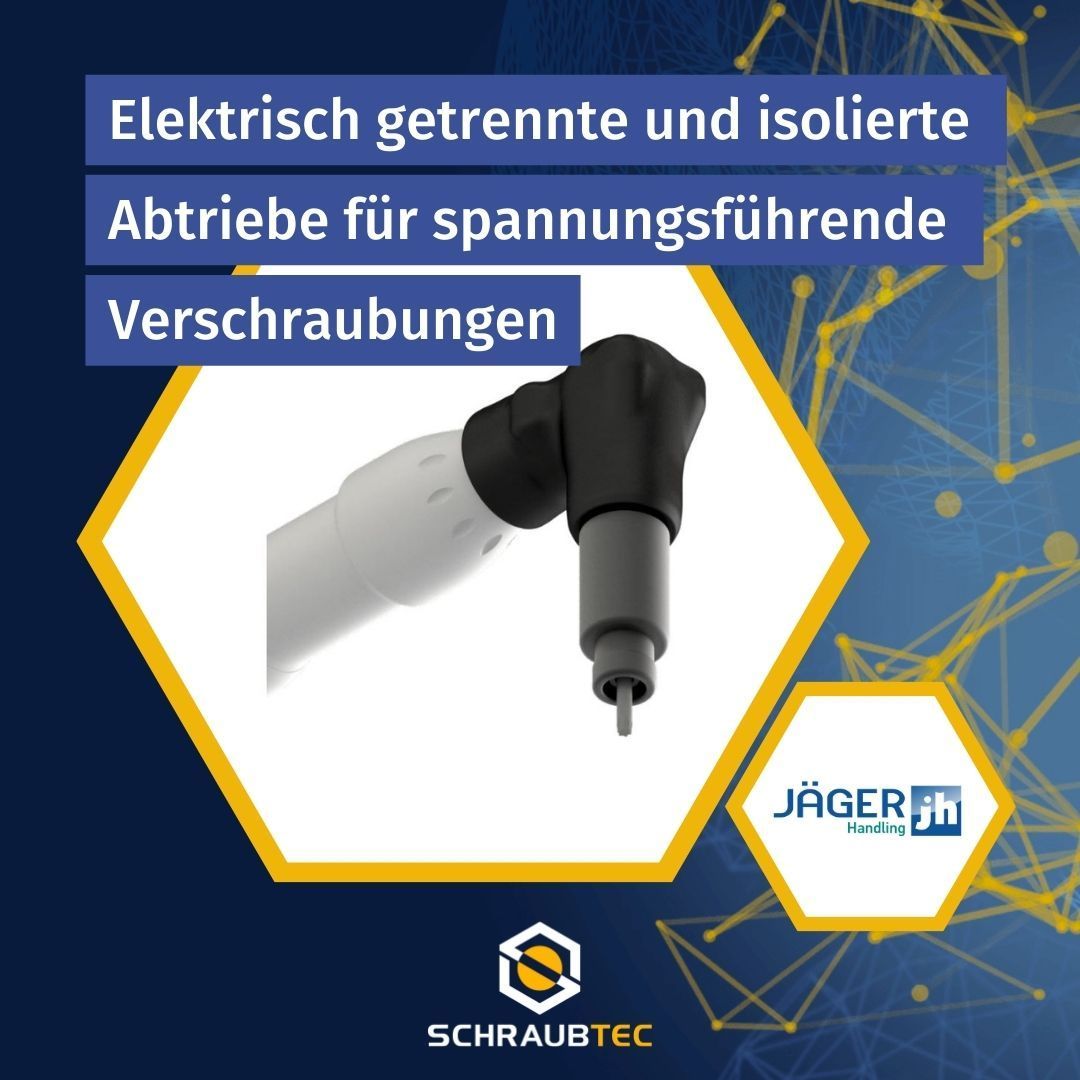

Electrically separated and isolated drives

• Screw applications in the high-voltage range up to a maximum voltage of 1,500 V
• electrical separation between input and output shaft
• The surfaces on the straight output are electrically insulated
• both outer sleeves are mechanically decoupled from the base tool
• Optimal protection of workers and manual screwdrivers or built-in screwdrivers against electrical voltage
• suitable for hand-held screw connections with position monitoring and tight screwing points

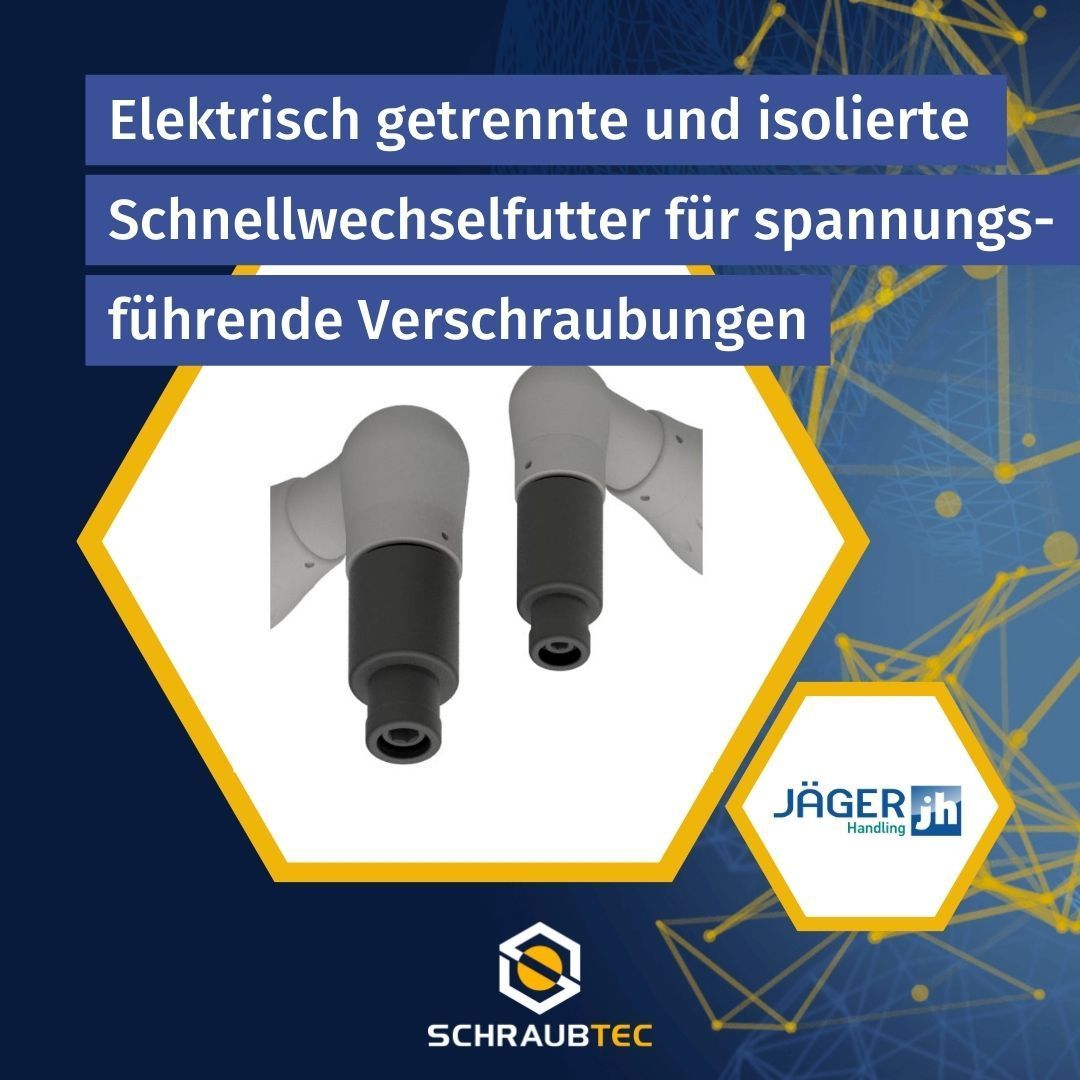

Electrically separated and insulated quick-change chucks

• Screw applications in the high-voltage range up to a maximum voltage of 1,500 V
• electrical separation between input and output shaft
• The surfaces on the straight output are electrically insulated
• both outer sleeves are mechanically decoupled from the base tool
• Optimal protection of workers and hand screwdrivers against electrical voltage
• optimally coordinated sizes for many different hand screwdrivers and makes

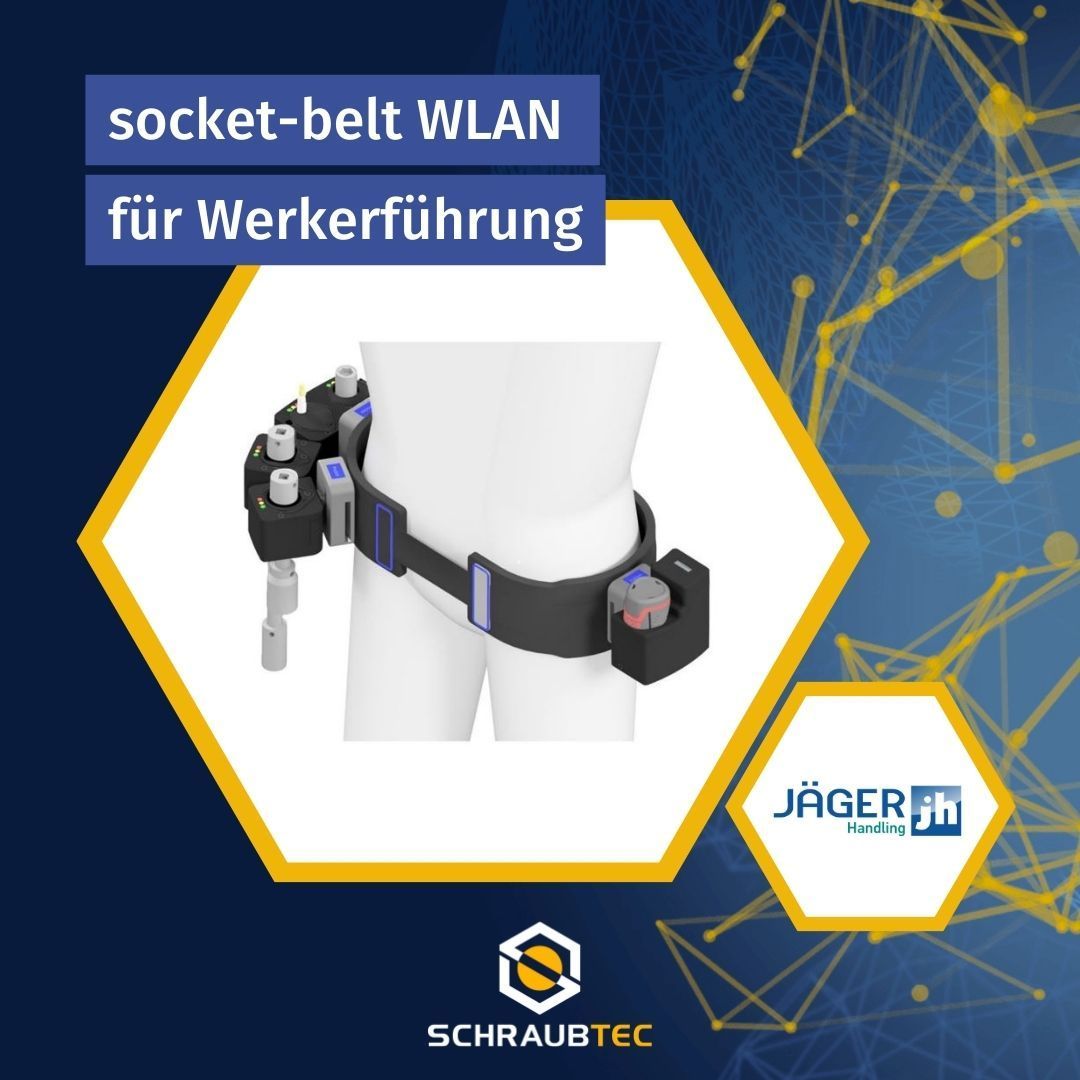

socket-belt WLAN

• Module with power supply for 12V battery and WLAN receiver unit
• Basic equipment socket-box duo for holding 2pcs. socket wrench/bit
• Extension module socket-box mono is required from 3-way version
• OLED Display
• Variants of Worker Guidance
• Free choice: The worker is free to choose which nut he takes from the quiver.
• Worker guidance Job control: Control/PLC specifies which tool must be removed
• Worker guidance with scanner: Job is scanned and specifies which tool must be removed

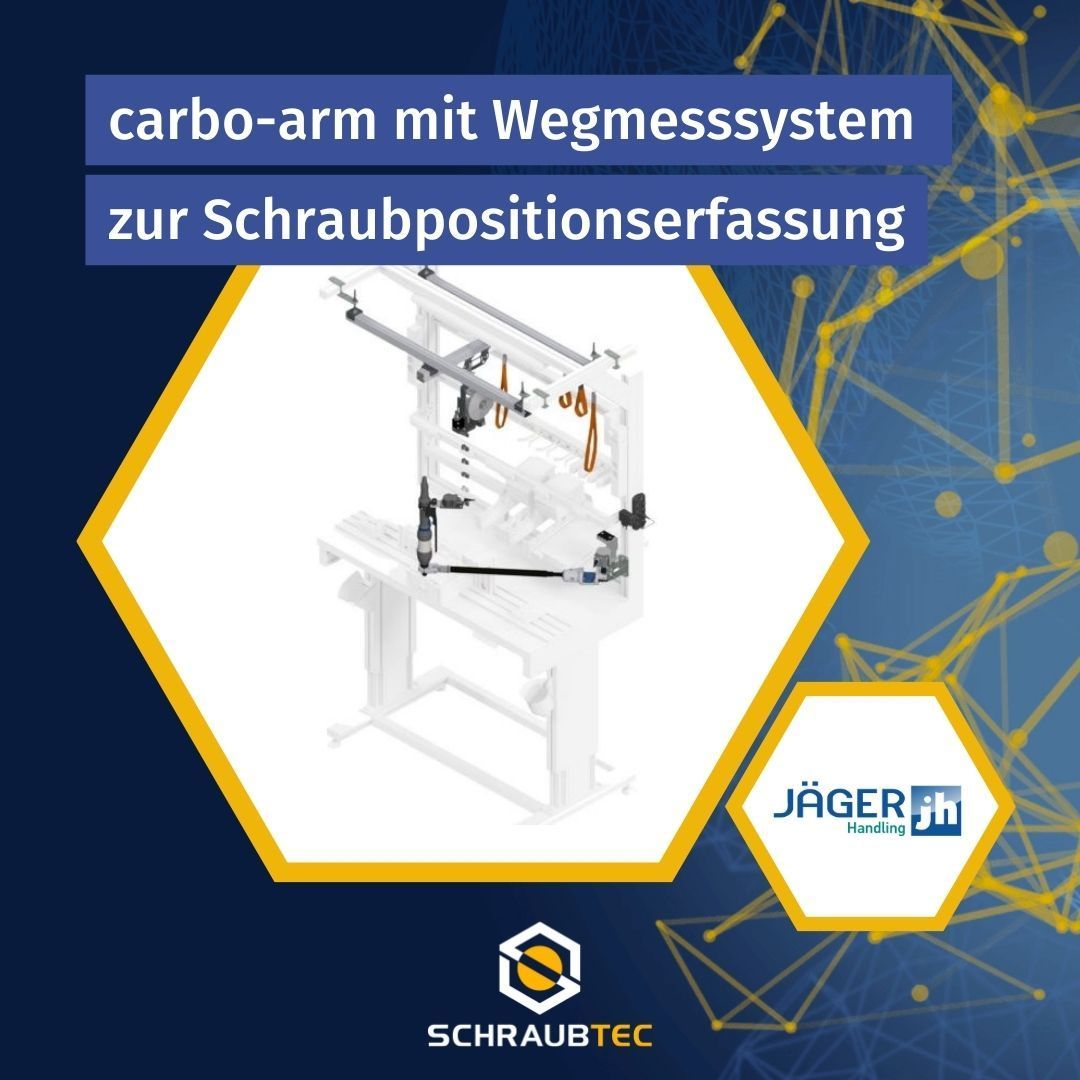

carbo-arm with displacement measuring system

• maintenance-free 3-fold telescopic extension made of carbon fiber
• Interface front: joint head for tool holders
• Rear interface: Cardanic connection with holder for laser sensor and holder for rotary encoder one swivel axis
• Equipped with tilt sensor for even more precise measurement of screw positions

Live on site in Bochum.
